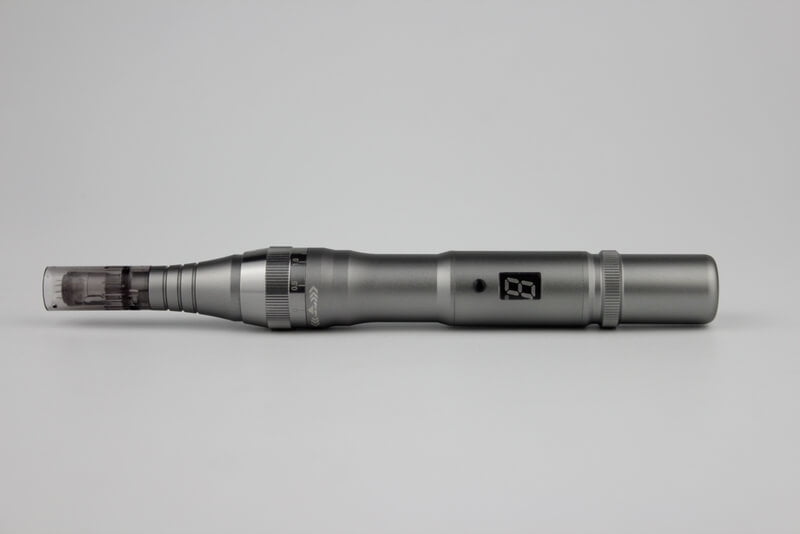

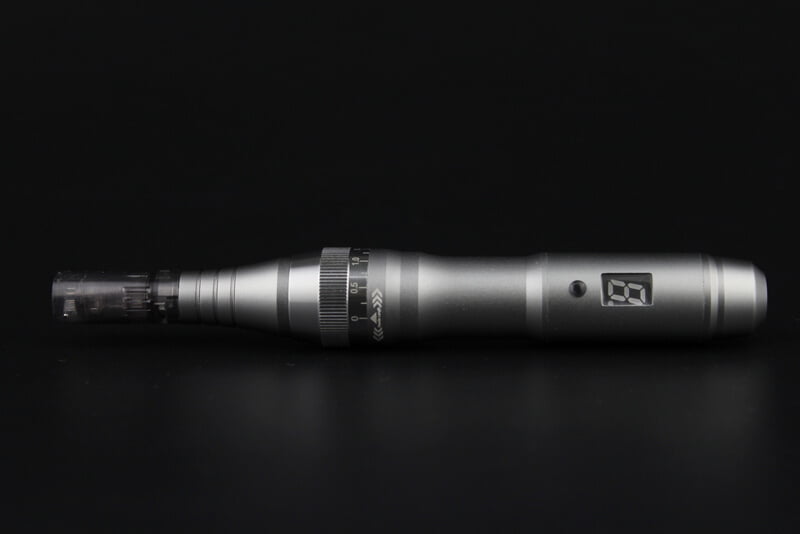

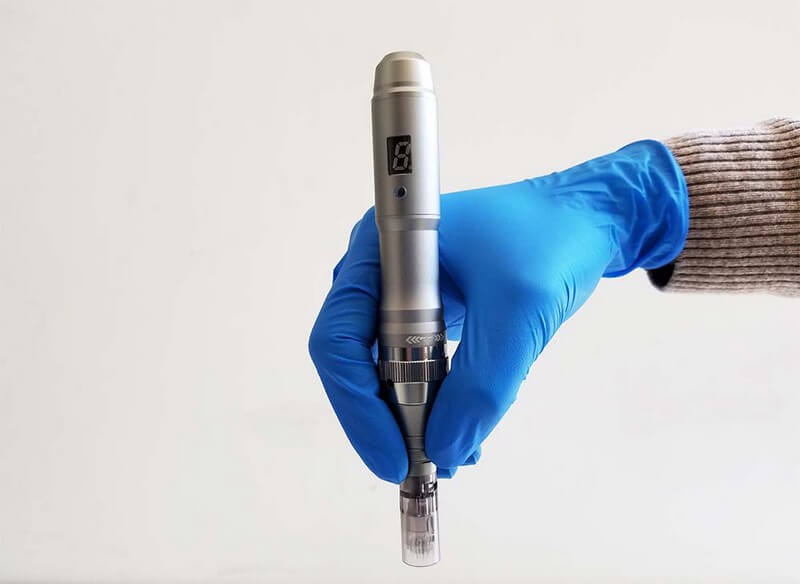

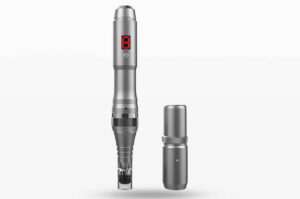

iBeautyPen™ 2 | Professional Automated Micro-needling Device
iBeautyPen™ 2 is one of the most advanced and cutting-edge Automated Fractional Micro-needling Device, offering powerful German Motor and adjustable needle length. Utilizing Auto Vertical Needling technology, iBeautyPen penetrate into the skin with disposable needle cartridge painlessly and efficiently creating thousands of microchannels in a few seconds.
The micro needling treatment has been used successfully to treat fine lines, wrinkles, lax and sun-damaged skin to reduce the appearance of stretch marks, improve acne ice pick scars, and induce hair’s regrowth. It has also been used to tighten skin after liposuction. It can be safely performed on all skin types and ethnicities.
The iBeautyPen is specially designed for professional needling purpose. Its robust performance and high-hygiene standard perfectly meet the practice of professionals such as dermatologist, aestheticians and beauticians. It can also be used by end users for home microneedling. The automated needling allows up to Max 2,600 micro-channels per second with precision skin needling control. The treatment is much more efficiency and much less painful than traditional derma roller needling.
- Automated Vertical Needling technology for more efficiency and less painful treatment
- Integrated Reciprocating DC motor design ensure full needle retraction with strong strength
- Superior Needle cartridge with anti-black-flow design
- Imported Powerful German DC Motor: durable, stable, low-heat and low-noise
- Perfectly spaced 12 needle pins made of surgical grade stainless steel 316
- 6 Level adjustable speed control (3,000RPM~12,000RPM) for optimal and precision needling operation
- Accurate Adjustable needle length 0 to 2.5mm offering the most optimal treatment

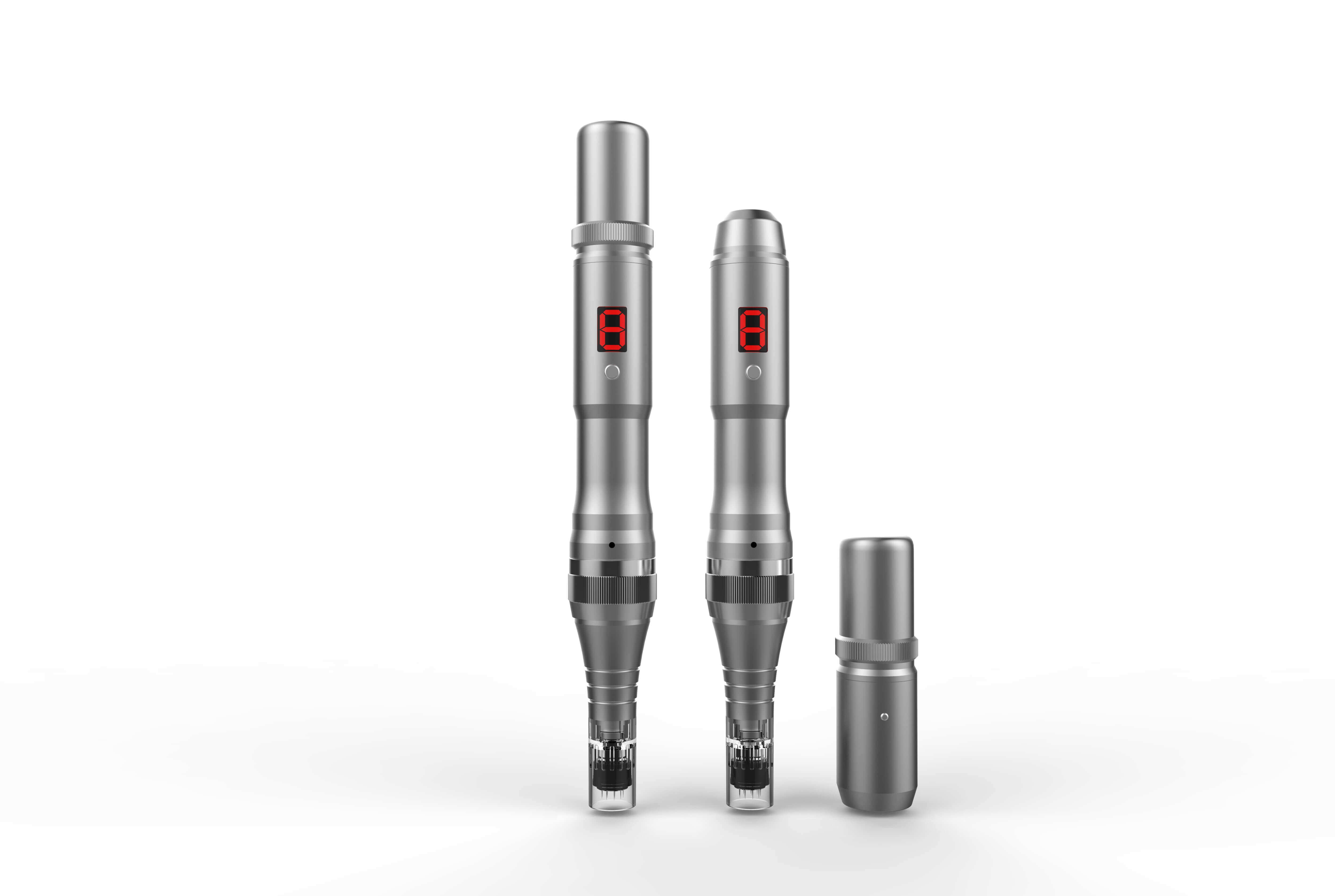

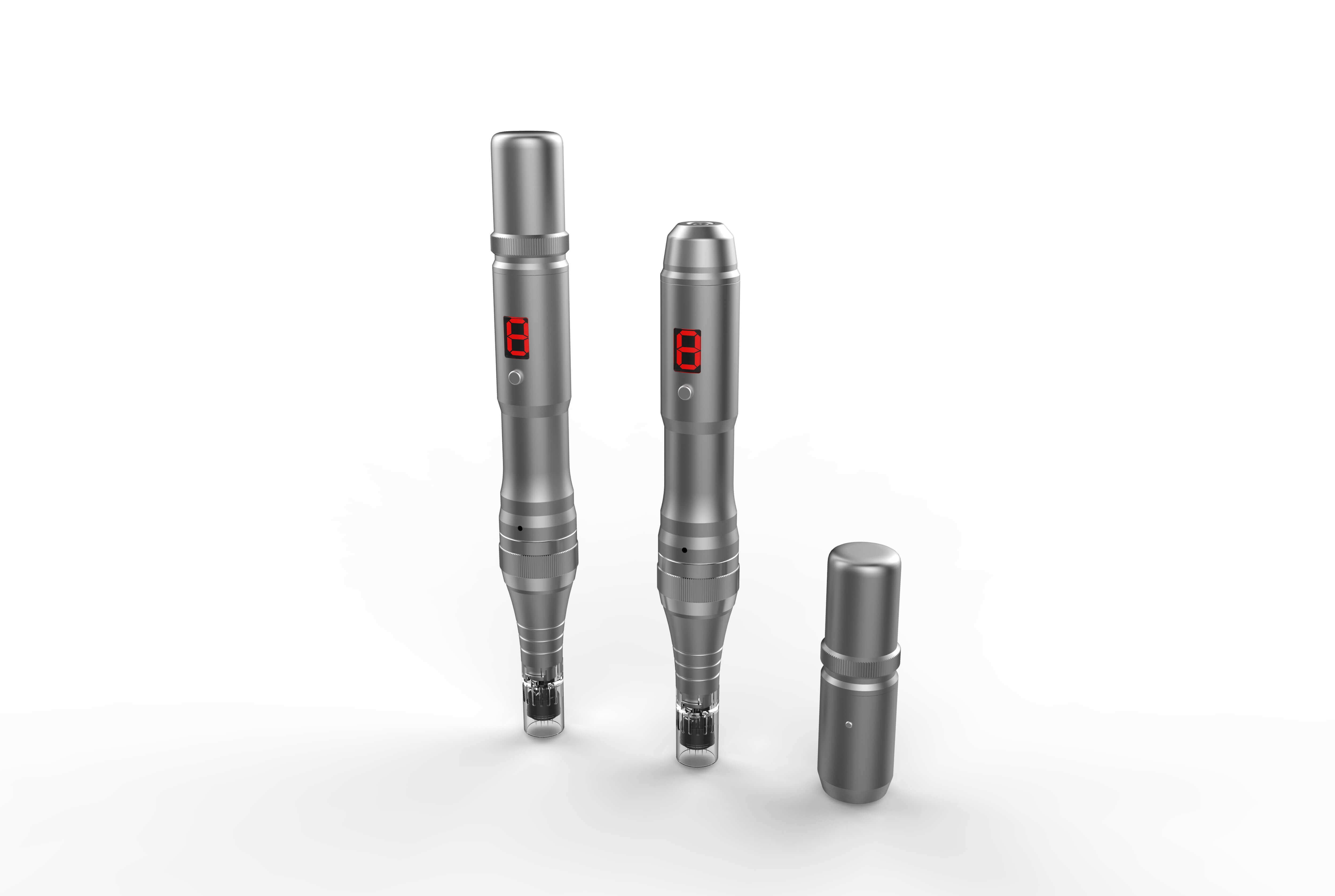

- 2 in 1 operation design: Rechargeable + Power adapter
- Integrated high-end Aluminum Alloy Body
- Ergonomic and luxury design
Advanced diode laser technology
- Wound Healing Mechanism
- Microneedle Mesotherapy
- Advanced Vertical Needling Technology
- How does iBeautypen work?
- Microneedle Treatment Demo
Collagen Induction Therapy (CIT)
Collagen Induction Therapy(CIT) or Percutaneous Collagen Induction(PCI) therapy is a regenerative method used to improve skin structure. Very fine needle lesions stimulate the skin to renew itself, without any significant damage to the epidermal tissues. As a consequence, needling greatly reduces the risk of complications and side effects compared to ablative and semi-ablative skin procedures. These fine incisions can extend over up to 50% of the skin surface without causing scars. The proviso is that the individual lesions are no bigger than 0.3mm in diameter. Clinical and scientific data underpin the efficacy of the method in the treatment of wrinkles and lines, stretch marks and various types of scars.
Micro needle Mesotherapy
The auto microneedling creates thousands of microchannels deep into the epidermal layer which greatly encourage the transepidermal transport of topical active substances. In practical terms, Needle lengths of 0.1–0.3mm are normally used in Cosmetic Needling for mesotherapy purpose. The needle puncture the superficial layers of the stratum corneum to improve the penetration of topically applied active substances. Since the needle-pricks remain in the epidermis, there is no intradermal bleeding and injuries.
iBeautypen™ Advanced Vertical Needling (AVN™) technology uses micro-needles to pierce the skin vertically with an automatic vibrating function, allowing over 2600 fine micro-channels per second to be created in the skin.
Luxury Standard Build High Quality
- Integrated Reciprocating DC Motor
- Powerful German DC Motor
- Superior Needle Cartridge
- Advanced Automatic Needling Design
iBeautyPen adopts Integrated Reciprocating DC motor design to provide powerful needling without the risk of micro-scratch on the skin. The needle cartridge is integrated locked into the Reciprocating DC motor enable consistent back-and-forth movement rather than circularly. This design makes sure each needle puncture has the same penetration strength with full needle retraction even under the highest speed.
Compared with other disintegrated spring-loaded DC motors, the back-and-forth movement of the needle is compulsory, powerful, reliable and consistent.
Imported German DC Motor offers the highest speed in this industry with robust performance. Compared with motors from Korea and China, it has the following advantages:
- Low noise and low heat
- High speed (Max 12,000RPM)
- Sturdy and consistent performance
- Long-service life
- Needle thickness: 33 gauge, creating tiny microchannels with less pain and trauma.
- Needle material: Surgical grade stainless steel SUS316. High strength, high reliability and hygiene, widely used for various medical applications
- 12 Needles Pins: Perfectly spaced with algorithmically calculated needle placement and positioning. 12 pin offers more evenly distributed microchannels than 9 needles .

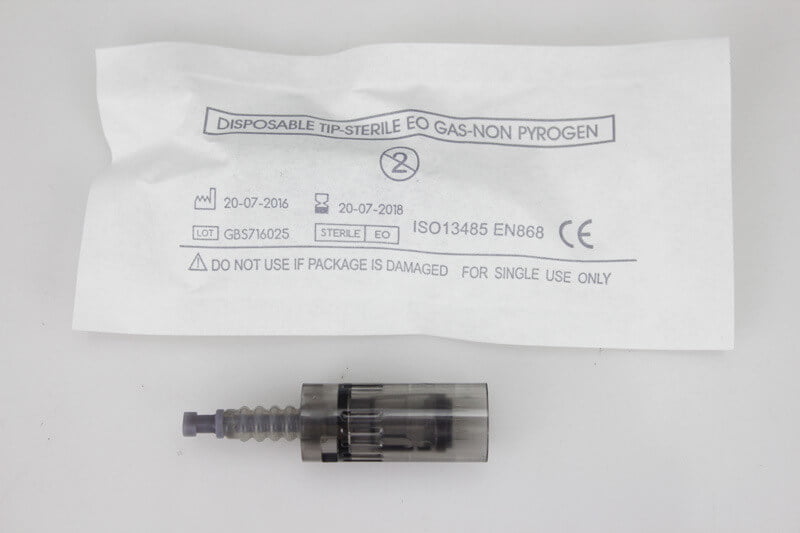

- EO Sterilization: Advanced sterilization method for complete needle tip sterilization
- Anti-back-flow Silicon Membrane: Prevent fluid flow back into the device body preventing cross-contamination.
- Vented Holes: Release air pressure during high-speed needling for skin safety protection. If the needle tip doesn’t has any vented port, the air pressure caused by high-speed movement may suck skin tissue up causing skin damage.
- Fluid Filter: prevent contamination to the needle.
- Locked-in Installation: Easy to install, stable needling and reduce risk of any contamination to the device body
- Independent Package: High hygiene and safety standard.

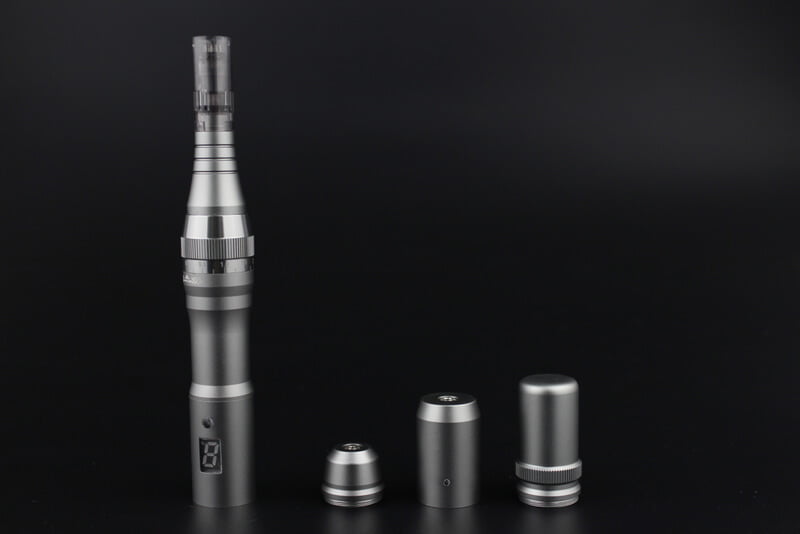

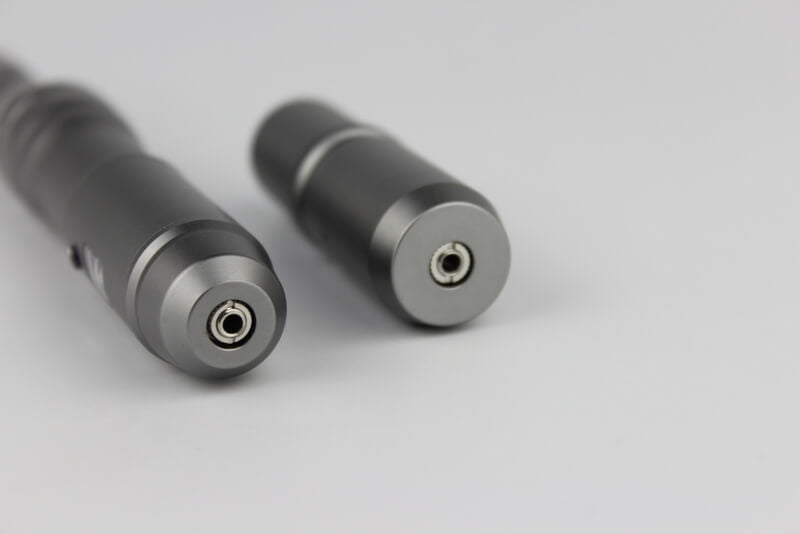

- 2 in 1 operation: Rechargeable + AC Power Adapter
- Rechargeable:1000mA; Convenient operation; Continuously working over 4 hours.
- AC Power adapter: Adjustable speed for professional micro needling.
- 6 Level adjustable speed control for optional and precision needling operation
3,000-12,000 RPM adjustable: Different speed is selected for different body part and applications providing the most optimal result.
- Accurate needle length adjustable from (0~2.5mm)
With one needle tip, operator can select needle length from 0~2.5mm based on patients conditions such as skin thickness, treatment area and needling applications, providing cost-effective and most optimal treatment.
- Integrated high-end Aluminum Alloy Body:
High end material. Good for heat-dissipating. Durable and reliable for heavy-duty demand. Easy to clean. High higine.

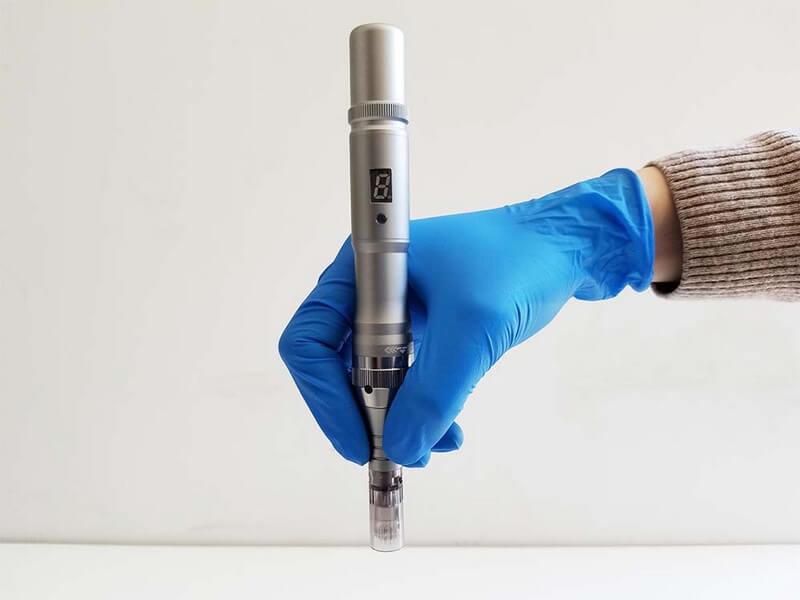

- Anti-slip design: matt body surface + anti-slip grip
- 3M long power adapter wire for convenient operation
- Special designed protective sleeve (optional usage)
Advantages by Comparison
- Derma Roller VS iBeautypen
- Motor Mechanism Comparison
- Needle Tip Difference
- Needle Thickness (needle gauge)
- Needle Length Adjustment
- Needle Material
- Microneedling VS Laser
- Anti-backflow Comparison
- iBeautypen Paper Test
Compared with traditional derma rollers, it has the following advantages:
- Much Less pain and trauma
- 10 times more efficiency
- More suitable for small areas treatment such as noise, between eyebrows and eyes, and localized scars
- Adjustable needle length and speed for more flexible and precision needling
- Vertical movement for easy penetration preventing needle bent/broken
- Easy to operate
There are mainly two type of motors for the micro needle pen
- Integrated Reciprocating DC motor
- Disintegrated Spring-loaded DC motor
iBeautyPen adopts Integrated Reciprocating DC motor design to provide powerful needling without the risk of micro-scratch on the skin. The needle cartridge is integrately locked into the Reciprocating DC motor enable consistent back and forth movement rather than circularly. The needle is pull back by the lever directly connected with the motor. This design makes sure each needle puncture has the same penetration strength with full needle retraction even under the highest speed.
The disintegrated Spring-loaded DC motor also provides back-and-forth movement. However, between the needle tip and motor, there is the spring connected with both side. So the needle is pull back by the force of spring only. The spring cannot make full compression under high-speed model result in incomplete needle retraction. Under high-speed or longer needle length, it can causes severe skin scratch and pose great danger to skin safety.
Each micro needle puncture creates microchannels that triggers the body to fill these microscopic wounds by producing new collagen and elastin. The quality of needle tip is one of the most important factor affecting treatment result and safety. There are many type of needle tip in the market. It’s very hard to tell the difference for consumers. Please pay attention to the following points before buying.
In actual practice, the thinner the needle, the smaller the microchannel it creates. This enable less invasive, less painful and more microchannels for more efficiency treatment. However, if the needle is too thin, it may not be strong enough for deep needling which may get bent or broken during needling especially for length over1.0 mm. In the market, most of the needle gauge ranges from 30 to 33. In our opinion. 30 (0.3mm) is a bit too thick. And 31(0.25mm) to 33(0.2mm) gauge should be ideal for professional microneedling. We use 33 needle gauge which is the thinnest in the market.
Example of bad quality needle tip:
Needle length can be adjustable from 0~2.5mm or 0~2.0mm. Very few devices provide fixed needle length. However, we found some needling pen has inaccurate needle length. For instance, when you want to select 1.0mm, the actual length was over 1.5mm. Such device pose potential danger to the treatment.
Below is the example of inaccurate needle length adjustment by fake My-M micro needle device.
Medical grade Stainless Steel 304 and Surgical grades of Stainless steel-316.
Stainless steel is one of the most commonly used materials in the manufacture of medical devices, in particular medical grade Stainless Steel 304 and surgical grade Stainless steel-316. Compared with SUS-304, SUS-316 has better characteristics especially for the hardness and sharpness.
Note: be aware some cheap needle tips use cheap steel materials. Such needles can easily get bent. And the hygiene standard is also unknown.
Auto Micro Needling VS Fractional Laser Resurfacing
Auto Micro needling cost about 150 to 300USD per treatment. The minimum costs of aggressive laser therapy are about $500 dollar per treatment for the smallest area of your skin, for a whole body or face could be much more.
Microneedling does not use thermal heat unlike Lasers, it is safe to use on all skin types and all skin colors. There is no risk of post-inflammatory hyper-pigmentation.
However, it can cause red bumpy patches for the next 2 days after the procedure, but this is due to the skin releasing toxins or old collagen fibers from the below surface of the skin. Micro-needle creates pores in the skin at about 0.2mm and does not burn the skin to promote collagen growth. It does promote the skin’s natural healing process.
Laser treated skin can cause permanent burns and injuries, especially for people with deeply pigmented skin might have a permanent lighter color on the area treated in laser or un-even skin tone. Burned skin reduces the protection of the body from resisting bacterial infections since it heals for a longer time and the skin’s natural moisture is lost.
Laser treated skin gets burned up, and a person who went thru the procedure should not to go directly or avoid staying under the sun even walking on the streets alone.
Auto microneedle treatment does not induce sun-sensitivity since it is being done by micro-needling.

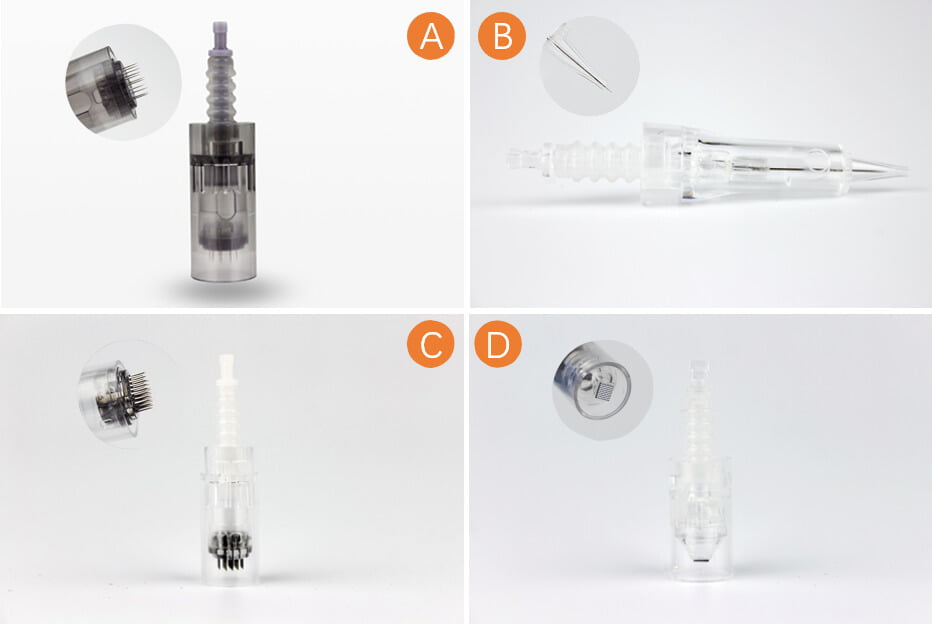

Needle Cartridge Anti-backflow Comparison with Dermapen needle cartridage
a. 0.25mm: Boosts application of products applied to skin; Anti-Aging.
b. 0.5mm: Reducing Face Wrinkles, Anti-Aging, Acne Scar Removal.
c. 1.0 mm-2.0mm: Treating Cellulite, Removing Stretch Marks, Treating Deep Wrinkles, Skin Pigmentation.
d. 2.0mm-2.5mm: Burn Scars, Surgery Scars, Treating Back Acne Scars, Deep Scars (Stomach, Thighs, Legs, Breasts), Hair Loss treatment.
iBeautypen Operation Caution
|Motor||Imported Germany Motor|
|Motor Movement Type||Integrated Reciprocating DC Motor|
|Fixed Speed (Battery Mode)||8500RPM|
|High Speed(Adjustable Mode)||12,000RPM|
|Low Speed(Adjustable Mode)||3,000RPM|
|Needle Length||0-2.5mm Adjustable(Step: 0.1mm)|

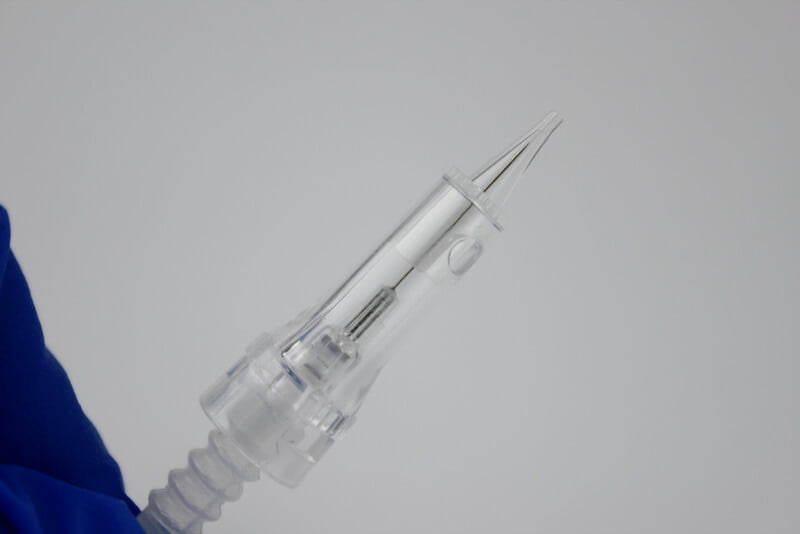

|Needle Number||1pin, 3pins, 5pins, 7pins, 9pins for micropigmentation; 12pins, 36pins, nano tips for microneedling|
|Needle Material||Surgical Grade Stainless Steel 316|
|Needle Shape||Round(sewing needle type)|
|Needle Design||Anti-back-flow Design|
|Needle Sterilization||EO Sterilization|
|Material||High Quality Aluminium Alloy|
|Voltage||AC 100~240V 50/60Hz|
|Charging Time||2 Hours|

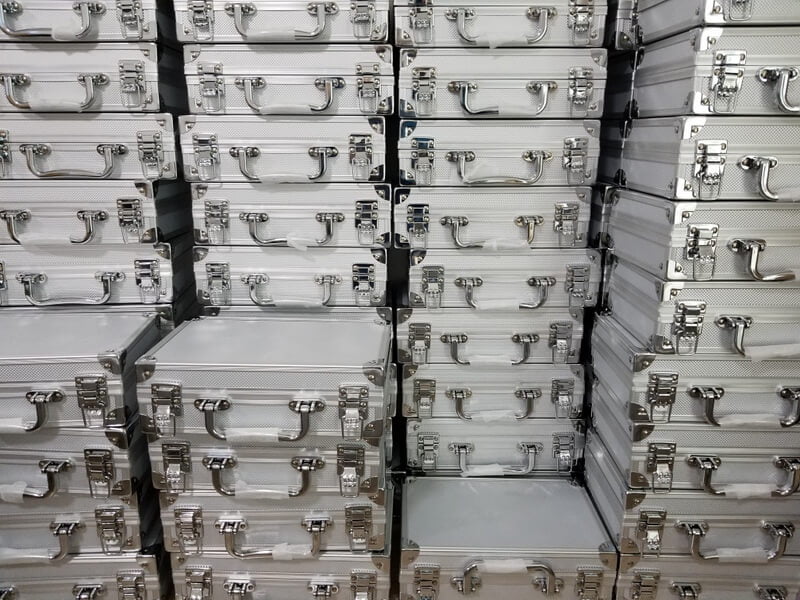

|Package||Aluminum Travel Box|
What is Auto Micro-Needling Therapy?
The Auto Micro-Needling Therapy is a portable automatic micro needle Derma Rejuvenation Therapy. It is a Non-surgical skin rejuvenation treatment which is widely used for skin rejuvenation, enhancement of skin elasticity, wrinkle reduction, acne scar reduction, and stretch mark reduction, stimulation of Hair growth, whitening and administration of active ingredients.
Auto Micro-Needling Therapy also creates superficial micro-channels which can be used with topical gels, creams and serums to help improve the appearance of the skin.
iBeautyPen™ is the most advanced medical-grade automated micro-needling therapy device on the market. It is easy and totally safe to use since the needle tips are hidden inside the guide.
Is iBeautyPen™ treatment painful?
The unique design of iBeautyPen™ allows for individualized settings, which makes the treatment very comfortable for most patients. For minimum needle depths iBeautyPen™ treatments are painless. Treatments over 1mm deep, a topical anesthesia cream is applied for 15-40 minutes before treatment and will render the treatments completely pain-free.
What Areas of the Body Can be treated?
For iBeautyPen™, the needle length is adjustable, so it can be used on all parts of the body, including the face, neck, décolleté, arms, hands, legs, abdomen and back.
Who is a candidate?
iBeautyPen™ can be used on all types of skin, on all skin colors, and can address a wide range of problems such as acne scars, stretch marks, fine lines and wrinkles. But it is not recommended for pregnant women, and patients with history of keloid scars, scleroderma, collagen vascular diseases, cardiac abnormalities, hemorrhagic disorders, hemostatic dysfunction or an active bacterial or fungal infection.
How is the procedure done?
Sterile needle-tip containing 13 tiny micro-needles is attached to the iBeautyPen™. Your skincare professional will apply a thin layer of topical gel to your skin and select the appropriate treatment depth based on your unique needs. Next, in a single motion, the pen will be gently pressed against the skin while simultaneously gliding in one direction until the entire treatment area has been covered.
What does it feel like?
The feeling associated with the iBeautyPen™ is similar to light sandpaper being moved across the skin. While some areas are more sensitive than others, the speed of the reciprocating needle tip reduces discomfort while the applied hydrating gel also makes the treatment more tolerable.
Is there any downtime after treatments?
Generally no, but the total healing time depends on the severity of the damaged skin; you may experience facial redness for 12-48 hours after the treatment. Most people are able to return to normal daily activities immediately after the treatment. Application of a breathable camouflage will seal the skin and cover any redness for an immediate return to work.
How many treatments are recommended?
Rejuvenation: 4-6 treatments 4 weeks apart
Acne scarring: 6 treatments 2 weeks apart
Stretch marks: 10 treatments 3 weeks apart
When will I see results?
Typically, you will see results after the first treatment. Lasting and more significant results will occur after 4 to 6 treatments (spaced 2-4 weeks apart). Your skin will continue to improve over the next 6-12 months after a course of treatments and when combined with the recommended post treatment care. Damage that has occurred over an extensive period of time won’t disappear immediately. You may not see the final result for up to 3-6 months following your final session.
What should you do after the treatment?
- Avoid sun exposure for 24 hours and then always use sunscreen.
- Apply cool compresses, aquaphor, Vaseline or plastibase for the day as needed
- Gently cleanse and hydrate for the 1st 72 hours. Avoid any harsh products AHA, Retinols, scrubbing, exfoliants
- As your skin is healing this is a great time to be using antioxidants or growth factors
- Avoid swimming and strenuous activity for 24 hours.
- After 3 days you can return to your normal skin care.
Do I have to use a certain product line with iBeautyPen™?
Choosing different serums depends on the needs in the area, such as hyaluronic acid based moisturizing slippage serum, green phyto serum. If treatments are over 1mm deep, a topical anesthesia cream is applied for 15-40 minutes before treatment and will render the treatments completely pain-free. If you do not know which kind of serum you should use, please consult your skincare professional on which products will best aid in achieving optimal results.
Can iBeautyPen™ provide training?
We provide detailed user manual and video for machine training. Our customer has no problem manipulating the machine by studying the manuals.
What is the after-sale service?
For the after sell service, we provide 2 years warranty and life-time repair service. With warranty period, we will provide spare parts free of charge including DHL delivery cost. If the machine has serious working problem, we have the “exchange policy“. We will send you a complete new machine for change.
